Product Overview


Version: 1.5
Last Update: 10-15-2012
Permissions: Modify/Copy/No Transfer
Objects: 2
PrimCounts:
  • FX SCAN Ai100: 10
  • Controller: 4
Price: L$750


Product Content


  • [URW]_FX_SCAN_Ai100_L
  • [URW]_FX_SCAN_Ai100_R
  • [URW]_FX_SCAN_Ai100_CTRL
  • [URW]_FX_SCAN_Ai100_NOTE


Information


[URW]_FX_SCAN_Ai100:

***Please rez Scanner while in edit mode so all parts of the FX_SCAN are selected.***

The FX_SCAN_Ai100 is a scanning light effect and projects different figures (Gobos) in several Colors on the floor.
The FX_SCAN_Ai100 has:
  • 8 Different Colors.
  • 7 Default Gobos and one slot reserved for a custom Gobo (see: ADVANCED SET-UP).
  • 3 Scan Speeds and Scan Speed Off.
  • 4 Flash modes and Flash Off.
  • 4 Animation Rotation modes, Reverse Animation Rotation and Animation Rotation Off.
  • 4 Beam and Gobo sizes.
  • 3 Programs, Random Colors and Gobos, Random All, Color In Order and Program Off.
  • Adjustable Transparancy, Glow, Timer settings (see: ADVANCED SET-UP).


Manual


[URW]_FX_SCAN_Ai100_L, [URW]_FX_SCAN_Ai100_R:

When the FX_SCAN_Ai100 Menu prim (Mirror) is pressed by the owner, a menu will appear with the following options:
  • RESET: Resets your Scanner to the original settings and Advanced Set-Up entries.
  • SET 1, 2, 3: You can create up to 3 groups of FX_FX_SCAN_Ai100s. Default is Set 1.
  • RL ON/OFF: Enables/Disables the Scanners Prim Light effect.
  • GRND ON/OFF: Enables/Disables the Scanners Gobo/Ground effect.
  • LOAD DATA: Loads the Menu Prim Description Box entries (see: ADVANCED SET-UP).
  • Exit Menu: To exit the menu the correct way.




[URW]_FX_[URW]_FX_SCAN_Ai100_CTRL:

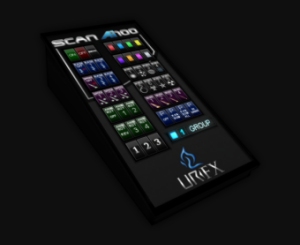

The Controller has 45 buttons:
  • ON: The last known Program/State will be started.
  • OFF: Turns both the FX_SCAN_Ai100 and Controller off.
  • 1, 2, 3: To access FX_SCAN_Ai100s who are assigned to SET 1, SET 2 or SET 3.
  • FLASH OFF, 1, 2, 3, 4: Starts/Stops the Scanners Flash Mode.
  • SPEED OFF, 1, 2, 3: Starts/Stops the Scanning Speed Mode.
  • ANIM ROT OFF, REV, 1, 2, 3, 4: Starts/Stops/Reverses the Scanners Animation Rotation Mode.
  • COLORS: Scanner Colors are: red, blue, green, yellow, purple, orange, magenta and white.
  • GOBOS 1, 2, 3, 4, 5, 6, 7, 8: Starts the Gobo of choice. Gobo 4 can be custom texture.
  • SIZE 1, 2, 3, 4: Starts Beam and Gobo sizes.
  • P OFF: Stops the Random/In Order Programs.
  • RANDOM: Starts the Scanners Random Colors and Gobos Program.
  • RANDOM ALL: Starts the Scanners Random All Program. All modes Random combined.
  • IN ORDER: Starts the Scanners Color In Order Program.
CONTROLLER MENU:

  • Owner, Group, All: Makes the Controller accessible for Owner, Group and All. Default is Group.
  • RESET: To restore the controllers default settings.
  • Update: To check for product updates. * Can take up to 20 seconds before you'll recieve a response.


Advanced Set-Up


[URW]_FX_SCAN_Ai100_L, [URW]_FX_SCAN_Ai100_R:

There are a couple of settings that can be adjusted by filling in the Scanners Menu Prim Description Field.

These settings are:
  • Beam/Gobo Transparancy, Range from 0.0 (clear) to 1.0 (solid). Default is 0.5.
  • Beam Gobo Glow, Range from 0.0 (no glow) to 1.0 (full glow). Default is 0.1.
  • Random/In Order Program Timer, Range from 5.0 Seconds - Endless. Default is 10 Seconds.
  • Custom Beam Sizes*, Value needs to be changed after the sizes has been altered.
  • Scanner rotation angle, The amount of degrees the scanner rotates. Default is 140.0 degrees.
The Description Field is Built up like this:
  • Transparancy, Glow, Timer, Custom Beam Size (Values are separated by commas).
The Description Field looks like this:
  • 0.5, 0.1, 10.0, 10.0, 140,0
After filling in the desired values press Menu Prim and choose "LOAD DATA". Changes will be confirmed.

To Reset the Object Description Field press Menu Prim and choose "RESET". All entries will be lost. Changes will be confirmed.

* The Beam lenght sizes can be changed by hand in edit mode. Right after changing the sizes, the length value (Z-axis) needs to be filled in the Scanners Menu Prim Description Field. After filling in the desired value press Menu Prim and choose "LOAD DATA". Changes will be confirmed. The ground effect prims positions can be altered also.

Custom Gobo Set-Up


[URW]_FX_SCAN_Ai100_L, [URW]_FX_SCAN_Ai100_R:

Custom Gobos must be 64 x 128, 128 x 256 or 256 x 512. Top square contains Gobo.

  • 1. Select the Scanners Menu prim (Mirror) with Edit linked enabled.
  • 2. Go to the Content Tab of the Build Tool.
  • 3. Double click the "GOBOS_UUID_NOTECARD".
  • 4. There are 8 entries, each of them stands for one of the 8 Different Gobos.
  • 5. Rightclick your own Gobo texture in your inventory and choose "Copy Asset UUID".
  • 6. Paste this info into the "GOBOS_UUID_NOTECARD" instead of the Gobo number you like to change. *
  • 7. Don't use Enters or Spaces!
  • 8. Leave other Gobo numbers that you don't want to change untouched.

  • * If you only like to change Gobo 2 for example then The "GOBOS_UUID_NOTECARD" should look something like this:
    ------------------------------------------------
    1
    4236f115-33d4-8e35-f71e-32df751cdc4d
    3
    4
    5
    6
    7
    8
    ------------------------------------------------

  • 9. Save the "GOBOS_UUID_NOTECARD".
  • 10. Your entries will be processed automatically.
**UR Wares can create Custom Gobos for you and provide you with the UUID. Costs depends on the amount of work, but has always a minimum of 1000L$ per Gobo. Please contact BertusDebacle Bade by sending a notecard for more information**

Update History


VERSION: 1.5, 10-15-2012
  • ADDED: Adjustable Scanner rotation angle (see: ADVANCED SET-UP).
VERSION: 1.4, 03-06-2012
  • FIXED: Custom Gobos error (See Custom Gobo Set-Up).
VERSION: 1.3, 02-21-2012
  • FIXED: Controller Owner, Group, All rights.
  • CHANGED: Controller is now modifiable.
VERSION: 1.2, 12-05-2011
  • ADDED: 8 Custom Gobos now possible (see: ADVANCED SET-UP/Custom Gobo Set-Up).
VERSION: 1.1, 10-22-2011
  • ADDED: Change Beam length size now possible (see: ADVANCED SET-UP).
VERSION: 1.0, 06-20-2011
  • FIRST VERSION.
